Envibe: How to configure KitchenGo for POS

Envibe: How to configure KitchenGo for POS

Question

How is KitcheGo configured with Envibe POS?


 

Answer

The following guide explains how to integrate KitchenGo services and Logic Control Hardware with Envibe POS Module. 

Note KitchenGo requires a license to be enabled im Envibe.
Please contact Support for any enquiries regarding a  KitchenGo Envibe license.

 

Overall Concept of KitchenGo 

KitchenGo is a food & beverage order display system linked to point of sale, replacing printed dockets (popular in the fast-food industry)


The KitchenGo integration utilises an XML file drop implementation. When sales transactions are completed, an XML file pertaining to the relevant sales elements is generated and placed in a folder determined by the deployment area settings.


If an unexpected error occurs while producing or writing the XML file, Envibe will fall back to the default docket printing implemen


Population Order

Orders are populated from the related sales record and transaction as follows:


  • Order.ID > SalesRecord.Identifier

  • Order.PosTerminal > SiteTerminal.Name

  • Order.GuestTable > SalesTransaction.PagerNumber (if present)

  • Order.ServerName > SalesTransaction.StaffRecord.Alias

  • Order.Destination > populated with the comma separated SalesDocket.Name values of the items included on the order

  • Order.OrderStatus > hard-coded to "0" (paid)

  • Order.OrderType > not specified (standard)

  • Order.Customer.UserInfo > SalesRecord.ContactRecord.Name/Company (if present), SalesRecord.ContactName (if present), otherwise "Anonymous"


Sales Elements

Sales elements will be included as items on a KitchenGo order if:


  • they are not an upgrade of another sales element

  • they have a positive quantity

  • they have a configured Sales Ticket

  • the configured Sales Ticket has the Send to KitchenGo option toggled on


Items are populated from the related sales element as follows:

  • Item.ID > SalesElement.Key

  • Item.Name > SalesElement.Name (by default, populated from the underlying SalesItem name)

  • Item.Category > not specified

  • Item.Quantity > SalesElement.Quantity

  • Item.KDSStation > hard-coded to "1:0", which will deliver to device "1" on its 1st (primary) screen


KitchenGo does not support fractional (non-whole number) quantities. The Envibe POS does not support adding fractional quantity elements, but in the case that one is encountered, the user will be prompted with a message indicating that the element will not be sent to KitchenGo.

As a fall back, these elements will be sent to the docket printer as usual.


Comments

If the sales element has had comments recorded against it, the comments will be included as the first condiment as follows:

  • Condiment.ID > SalesElement.Key

  • Condiment.Name > SalesElement.Comments


Upgrade Sales Elements

Any upgrade sales elements for a sales element included as an item on a KitchenGo order will be included as a condiment for that item, regardless of sales ticket configuration.


Upgrade sales elements with negative quantities will still be omitted from KitchenGo orders.


Condiments are populated from upgrade sales elements as follows:

  • Condiment.ID > UpgradeSalesElement.Key

  • Condiment.Name > UpgradeSalesElement.Name


As KitchenGo does not support condiments having a quantity, if the upgrade sales element has a quantity greater than 1, the quantity will be prepended to the Condiment Name. e.g. "2 x <SalesElement.Name>"


If the upgrade sales elements has had comments recorded against it, these will not be included as part of the KitchenGo order.



Configuration Steps

Follow these steps to initiate an integration:

  • acquire a license for the KitchenGo module

  • register deployment details of shared folder.

For example:

integration KG with [Kitchen Go]

{

  [Xml API Folder Path] = “C:\{path-to-shared=folder]”;

}

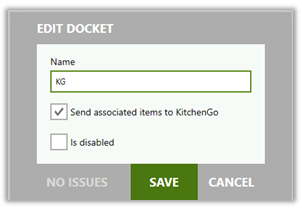

  1. Data Management > Dockets

  • set checked Send associated items to KitchenGO

Graphical user interface, text, application Description automatically generated

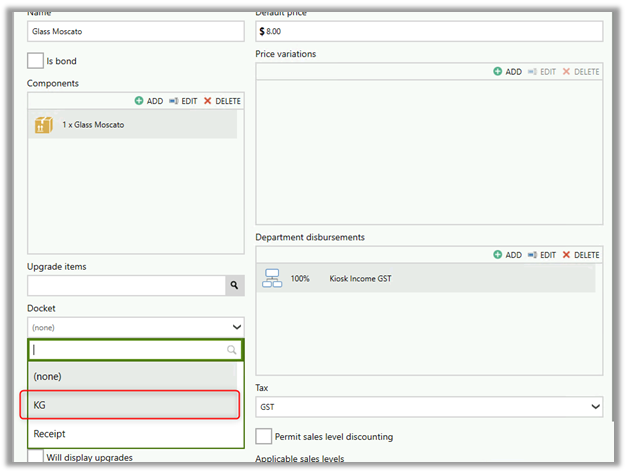

  1. Data Management > Items
    1. change items that need directing to the KitchenGo system by assigning the appropriate Docket


  • Graphical user interface, text, application Description automatically generated

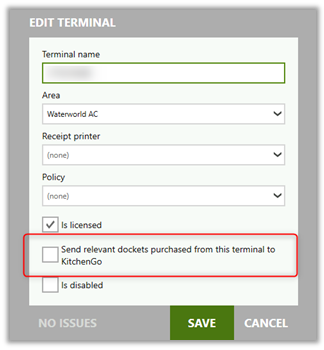

  1. Data Management > Terminals
    1. set checked Send relevant dockets purchased from this terminal to KitchenGO for relevant terminals
Graphical user interface, table Description automatically generated



  1. configure KitchenGo Premium Order source remote folder to match the deployment area configuration

Server service will require a restart after changes to the deployment area.
